Beskrivelse

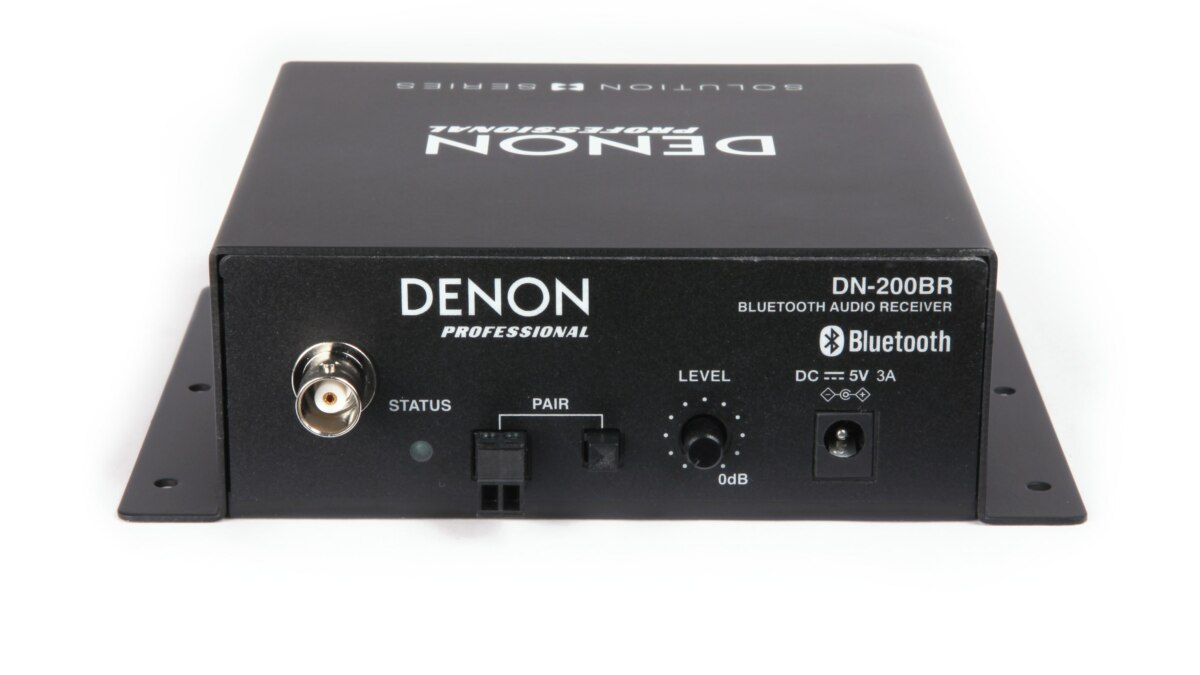

Diskret og robust mottaker som tar imot signaler trådløst via Bluetooth. Via de balanserte XLR eller ubalanserte ¼” utganger kan signalet sendes videre til miks- eller forsterkersystem. Rekkevidde opp til 25 meter.
- XLR og ¼” utganger
- 20 Hz – 20 KHz (+1 dBu)
- Bluetooth-versjon 2.1
- Codec: SBC, MP3, AAC, aptX
- 149 x 117 x 45 mm
- 0,6 kg
- Adds Bluetooth to any audio system
- Balanced XLR and unbalanced 1/4-inch audio outputs
- Up to 33m (100 ft) range
- Discreet, robust build quality that can mount nearly anywhere
-
Audio Specification
- Frequency response: 20 Hz – 20 KHz (+1 dBu)
- Signal-to-Noise Ratio: > 75 dB
- THD: < 0.01%
-
Bluetooth Specifications
- Version: 2.1 + Enhanced Data Rate (EDR)
- Maximum Receiver Power: Class 2, 4 dBm
- Receiver Frequency: 2.4 GHz – 2.480 GHz
- Receiver Range: Up to 82 ft. / 25 m
- Receiver Sensitivity: -80 dBm @ 0.1% BER
- Supported Codec: SBC, MP3, AAC, aptX
Supported Profiles
- AVCTP 1.0, AVRCP 1.0, GAVDP 1.2, AVDTP 1.0, A2DP 1.2, Hands-Free Profile (HFP) 1.5, Headset Profile (HSP) 1.1
-
Analog Output
- Balanced (XLR): +4 dBu (+1 dB)
- Unbalanced (1/4” / 6.35mm): -2 dBu (+1 dB)
-
Environmental
- Operation Temperature: 41–95°F / 5–35°C
-
General
- Power Adapter: 5 V DC, 3 A, center-positive
- Input Voltage: 100–240 V AC, 50/60 Hz
- Dimensions (width x depth x height): 5.8” x 4.6” x 1.8” (149 x 117 x 45 mm)
- Weight: 1.3 lbs. (0.6kg)
